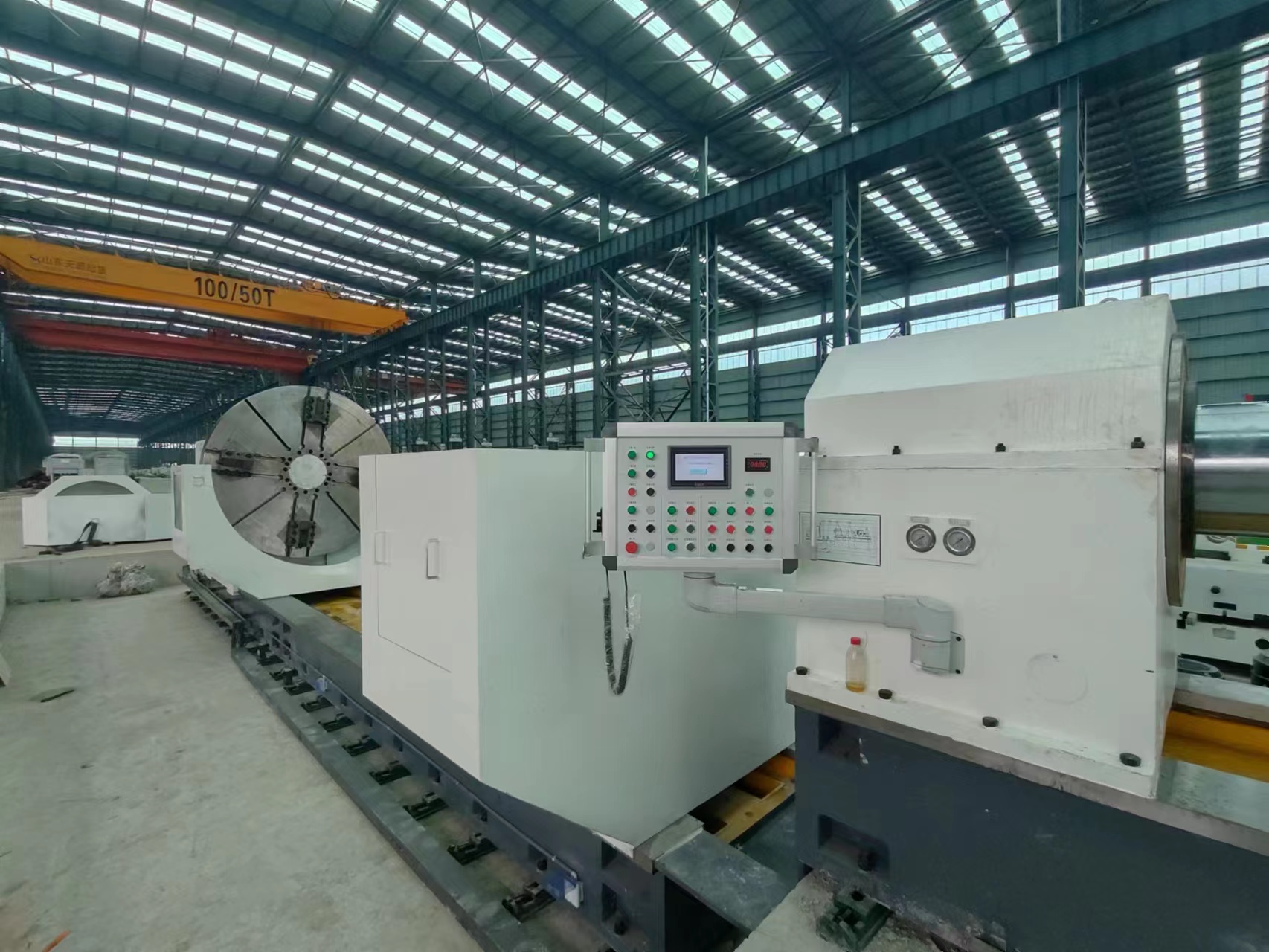

The TS21300 machine tool is a heavy-duty deep hole processing machine tool that can complete the drilling, boring and trepanning of deep holes of large-diameter heavy parts. It is suitable for the processing of large oil cylinders, high-pressure boiler tubes, cast pipe molds, wind power main shafts, ship transmission shafts and nuclear power tubes. The machine tool adopts a high-low bed layout. The workpiece bed and cooling oil tank are installed lower than the carriage bed, which meets the requirements of clamping large-diameter workpieces and coolant reflux circulation. At the same time, the center height of the carriage bed is low, which ensures the stability of feeding. The machine tool is equipped with a drill rod box, which can be selected according to the actual processing conditions of the workpiece, and the drill rod can be rotated or fixed. It is a powerful heavy-duty deep hole processing equipment that integrates deep hole processing functions such as drilling, boring and trepanning.
Scope of work
1. Drilling diameter range——————————Φ160～Φ200mm
2. Boring diameter range——————————Φ200～Φ3000mm
3. Nesting diameter range——————————Φ200～Φ800mm
4. Drilling and boring depth range————————————0～25m
5. Workpiece length range——————————————2～25m
6. Chuck clamping diameter range————————Φ500～Φ3500mm
7. Workpiece roller clamping range————————Φ500～Φ3500mm
Headstock
1. Spindle center height—————————————————2150mm
2. Headstock spindle front end taper hole————————Φ140mm 1:20
3. Headstock spindle speed range————2.5～60r/min ; 2nd gear, stepless
4. Headstock fast moving speed—————————————2m/min
Drill box
1. Spindle center height—————————————————900mm
2. Drill box spindle aperture—————————————Φ120mm
3. Drill box spindle front end taper hole—————————Φ140mm 1:20
4. Drill box spindle speed range—————3~200r/min; 3rd gear stepless
Feed system
1. Feed speed range——————————2~1000mm/min; stepless
2. Drag fast moving speed—————————————2m/min
Motor
1. Servo spindle motor power————————————— 110kW
2. Drill box servo spindle motor power——————55kW/75kW optional
3. Hydraulic pump motor power—————————————— 1.5kW
4. Headstock moving motor power——————————————11kW
5. Drag feed motor (AC servo)————————11kW, 70Nm
6. Cooling pump motor power——————————————22kW two groups
7. Total machine tool motor power (approximately)————————————240kW
Others
1. Workpiece guide rail width———————————————2200mm
2. Drill rod box guide rail width——————————————1250mm
3. Oiler reciprocating stroke———————————————250mm
4. Cooling system rated pressure—————————————1.5MPa
5. Cooling system maximum flow————————800L/min, steplessly adjustable
6. Hydraulic system rated working pressure————————————6.3MPa
7. Machine tool dimensions (approx.) ———————— 37m×7.6m×4.8m
8. Machine tool total weight (approx.) —————————————— 160t
