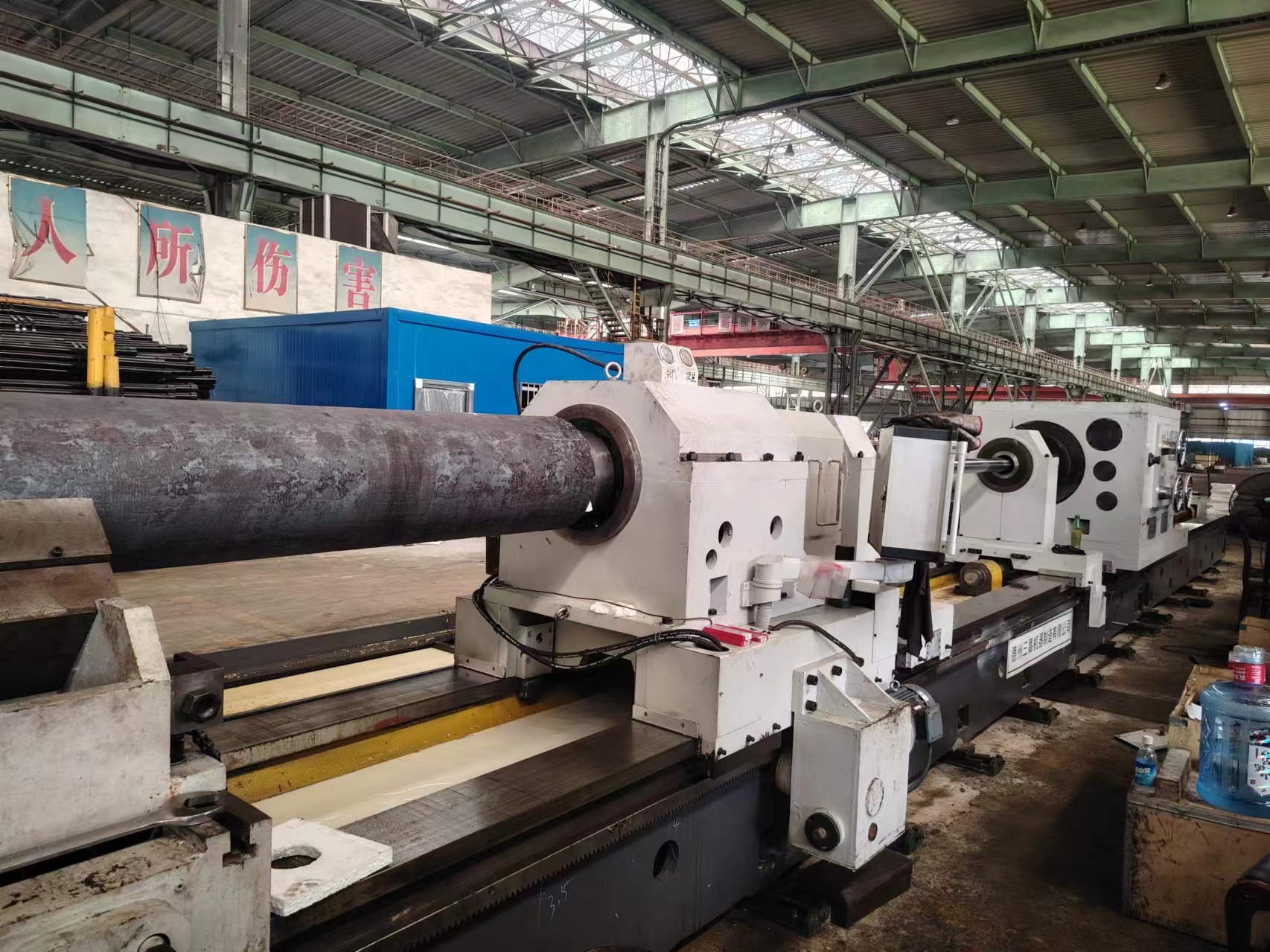

Recently, the customer customized four ZSK2114 CNC deep hole drilling machines, all of which have been put into production. This machine tool is a deep hole processing machine tool that can complete deep hole drilling and trepanning processing. The workpiece is fixed, and the tool rotates and feeds. When drilling, the oiler is used to supply cutting fluid, the chips are discharged from the drill rod, and the BTA chip removal process of the cutting fluid is used.
Main technical parameters of this machine tool
Drilling diameter range———-∮50-∮140mm
Maximum trepanning diameter———-∮140mm
Drilling depth range———1000-5000mm
Workpiece bracket clamping range——-∮150-∮850mm
Maximum machine tool load-bearing capacity———–∮20t
