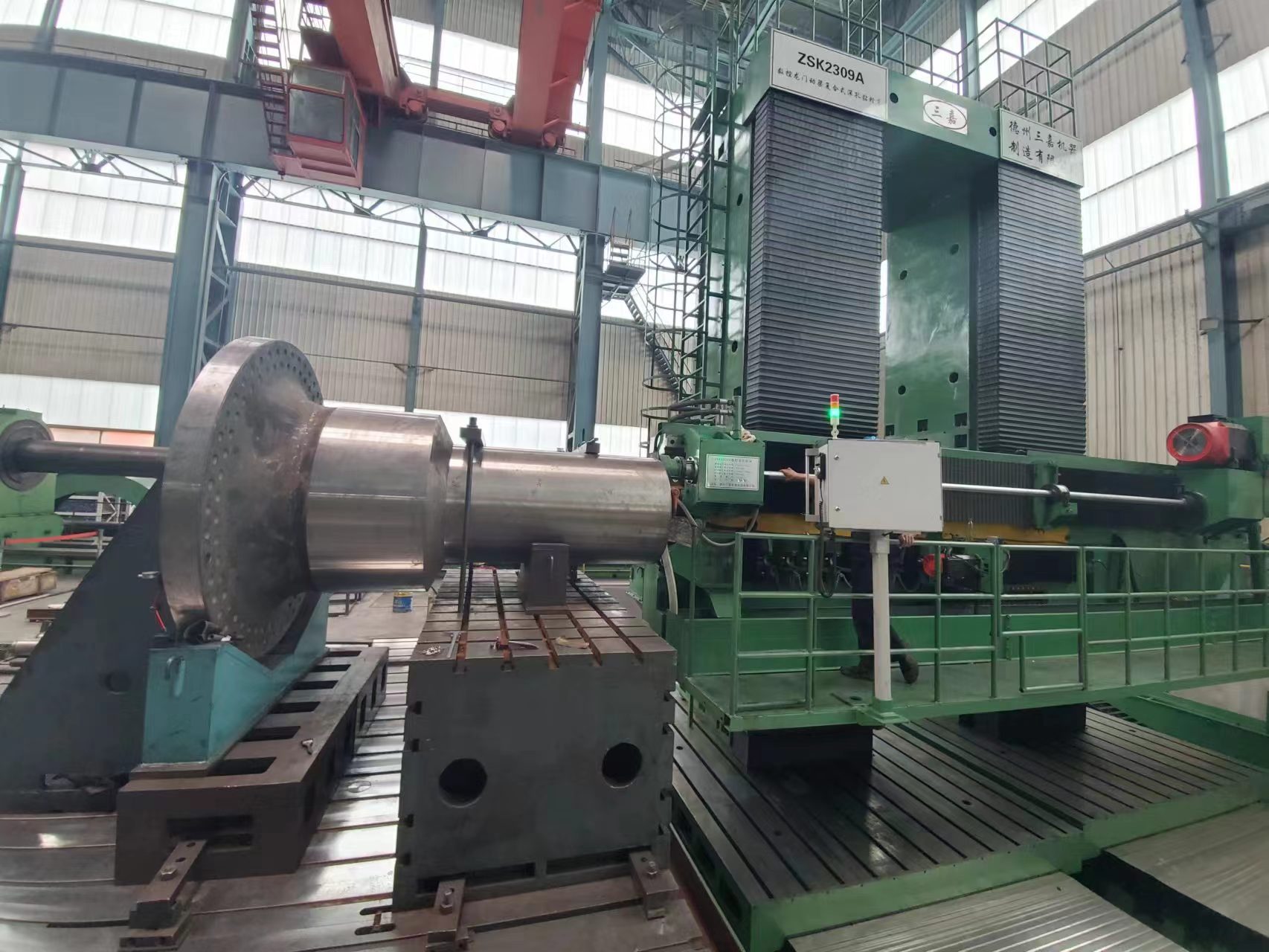

The machine tool is controlled by a CNC system and can be used to process workpieces with coordinate hole distribution. The X-axis drives the tool, the column system moves horizontally, the Y-axis drives the tool system to move up and down, and the Z1 and Z-axis drive the tool to move longitudinally. The machine tool includes both BTA deep hole drilling (internal chip removal) and gun drilling (external chip removal). Workpieces with coordinate hole distribution can be processed. Through one drilling, the processing accuracy and surface roughness that generally require drilling, expansion and reaming processes can be achieved. The main components and structures of the machine tool are as follows:
1. Bed
The X-axis is driven by a servo motor, driven by a ball screw pair, guided by a hydrostatic guide rail, and the hydrostatic guide rail pair carriage is partially inlaid with wear-resistant cast tin bronze plates. The two sets of bed bodies are arranged in parallel, and each set of bed bodies is equipped with a servo drive system, which can realize dual-drive and dual-action, synchronous control.
2. Drill rod box
The gun drill rod box is a single spindle structure, driven by a spindle motor, driven by a synchronous belt and pulley, and has stepless speed regulation.
The BTA drill rod box is a single spindle structure, driven by the spindle motor, driven by the reducer through the synchronous belt and pulley, and has infinite speed regulation.
3. Column part
The column consists of a main column and an auxiliary column. Both columns are equipped with a servo drive system, which can achieve dual drive and dual motion, synchronous control.
4. Gun drill guide frame, BTA oiler
The gun drill guide frame is used for gun drill bit guidance and gun drill rod support.
The BTA oiler is used for BTA drill bit guidance and BTA drill rod support.
The main technical specifications of the machine tool:
Gun drill drilling diameter range—φ5～φ35mm
BTA drilling diameter range—φ25mm～φ90mm
Gun drill drilling maximum depth—2500mm
BTA drilling maximum depth—5000mm
Z1 (gun drill) axis feed speed range—5～500mm/min
Z1 (gun drill) axis fast moving speed—8000mm/min
Z (BTA) axis feed speed range ——5～500mm/min
Z(BTA) axis fast moving speed ——8000mm/min
X axis fast moving speed————3000mm/min
X axis travel————————5500mm
X axis positioning accuracy/repeat positioning————0.08mm/0.05mm
Y axis fast moving speed——————3000mm/min
Y axis travel————————3000mm
Y axis positioning accuracy/repeat positioning————0.08mm/0.05mm
